Session 6: Integration with GitHub / GitLab

Track, organize and share your work: An introduction to Git for research

Course at Julius-Maximilians-Universität Würzburg, Research Training Group 2660: Approach-Avoidance

Slides | Source

License: CC BY 4.0 DOI

Dr. Lennart Wittkuhn
lennart.wittkuhn@tutanota.com

13:30

1 Last session: First steps with Git & Git Essentials

Last session: First steps with Git & Git Essentials

After the last session, you should now be able to answer the following questions / do the following:

First steps with Git

💡 You can initialize a Git repository.
💡 You can check the status of a Git repository.
💡 You understand the difference between the staging area and a commit.
💡 You can stage and commit changes.
💡 You understand the difference between a commit message and a description.

Git essentials

💡 You know what good commits look like.
💡 You know how to explore the commit history.
💡 You can compare different commits.
💡 You know how to use and create a .gitignore file.
💡 You can discuss which files can (not) be tracked well with Git and why.
💡 You know how to track empty folders in Git repositories.

Last session: Cheatsheet

First steps with Git

Command Description
git init Initializes a folder as a Git repository
git status Shows Git tracking status of files in the repository
git add Adds file(s) to the staging area
git commit Commits staged files
git commit -m "commit message" Commits staged files with a commit message

Last session: Cheatsheet

Git essentials

Command Description
git log Views past commits
git diff Views made changes compared to the last commit
git mv Renames or moves files and automatically stages the changes

Last session: recipes project

First steps with Git

At the end of this session, you should have accomplished the following:

  1. You set up Git.
  2. You initialized your recipes folder as a Git repository.
  3. You committed your first file to the recipes repository.

Please keep the recipes folder! We will continue to use it in the following sessions.

Last session: recipes project

Git Essentials

At the end of this session, you should have accomplished the following:

  1. Commit at least three changes in recipes.txt.
  2. Make at least one commit using git commit --amend.
    • For example, add a a new entry without a title first, commit, then add a title and use git commit --amend to add the title change to the same commit.
  3. Create a .gitignore file.
    • Everyone: Create a random file that you want to ignore, for example image.jpg.
    • All macOS users: Let your repository ignore .DS_Store.
  4. 🚀 Optional: Commit .gitkeep in an otherwise empty directory.

Please keep the recipes folder! We will continue to use it in the following sessions.

Common questions from last session

“How can I make changes in a text (.txt) file?”

  • Remember: It’s just a regular text file on your computer.
  • Option 1: Use a regular text editor (e.g., TextEdit on macOS, Notepad++ on Windows, or others).
  • Option 2: Use vim directly from the command line (see chapter / session on “Setup”).
  • Option 3: Use command line commands like echo "My text" >> recipes.txt.

“I ran git commit but nothing happened?”

  • Maybe you forgot to run git add before?

“Remember to cd into your recipes project folder!”

  • Every time you open the command line, it starts at a default location (likely your home directory).
  • Check in which folder you are, using pwd (“print working directory”).
  • Use cd to move to your recipes project folder before you start running the Git commands.

Important note: Git repository in /user folder?

  • Please make sure that your recipes folder is in a suitable place (for example, in the Desktop, Documents folders or where you keep your course-related files, …) and not in your user directory!
  • You can check your current working directory by running pwd in your recipes folder.
  • Also: Always remember to cd into your repository before you execute Git commands!
  • If your recipes folder is in your user directory, please tell us and we can fix it.

Tip: To prevent ever creating a Git repository inside your user folder, you can use:

Code
touch ~/.git

Running git init in the user directory now results in a (desired) error:

Output
fatal: invalid gitfile format: /Users/user/.git

Thanks to Eamon Caddigan for the idea!

Staging and Committing

Staging:

  • Command: git add
  • Purpose: Preparing and organizing files before they are recorded in the repository’s history.

Committing:

  • Command: git commit -m "commit message"
  • Purpose: Saving the changes in the staged files to the repository’s history, creating a snapshot.

Source: git-scm.com

Source: Heidi Seibold

2 This session: Integration with GitHub / GitLab

This session: Integration with GitHub / GitLab

Image from Techdobz

This session: Collaboration via Git and GitHub

Link to Pull Request

Learning objectives

💡 You can create a remote repository.
💡 You can connect your local Git repository to a remote repository service like GitHub or GitLab.
💡 You can pull and push changes to and from a remote repository.
💡 You can clone a repository from a remote repository.

Reading

“Remotes - Introduction”

Tasks

In this session, you will work on the following tasks:

  1. Reading: Read the chapter(s) “Remotes - Introduction” in the Version Control Book.
  2. Implementation: Try out the commands in the chapter.
  3. Exercises: Work on the exercises for the recipes project.

As always:

  1. Try out the commands of this session and play around with them.
  2. Check whether you have achieved the learning objectives.
  3. Ask questions!
  4. Let’s git started!

recipes project

At the end of this session, you should have accomplished the following:

  1. You created a GitHub account.
  2. You connected your GitHub account to your local Git using SSH.
  3. You created a new private(!) GitHub repository.
  4. You uploaded (i.e., “pushed”) the default branch of your recipes repository to GitHub.

Collaboration Option 1/2 (Basic / Advanced):

  1. You invited a partner from the course as a collaborator to your recipes on GitHub.
  2. You collaborated on a shared project by adding and committing changes to your partner’s repository.

Collaboration Option 3 (Alternative):

  1. You clone your own repository to a different location on your computer.
  2. Stage and commit changes in the repository in this new location.
  3. Push the changes to GitHub and pull them in the original repository location on your computer.

Optional:

  1. You created a short README.md file in your repository.

Please keep the recipes folder! We will continue to use it in the following sessions.

Cheatsheet

Command Description
git remote Manages remote repositories
git clone Creates a local copy of a repository
git pull Fetches and merges the latest changes from a remote repository into the current branch
git fetch Updates remote tracking branches
git push Uploads local commits to a remote repository

Exercises (1)

Mandatory for everyone!

Connect to remote repositories using SSH

  1. Generate an SSH key.
  2. Copy the SSH key to your clipboard.
  3. Add the SSH key to the remote repository (for example, GitHub or GitLab).

Upload your local repository to a remote repository

  1. Create an empty repository on the remote repository hosting platform, for example GitHub or GitLab. Make sure to not initialize the repository with any files!
  2. If needed, navigate to your project repository using the command line.
  3. Set the remote URL of your local repository to your remote repository.
  4. Push the changes on your default branch (main or master) to your remote repository.

Exercises (2)

Collaboration Option 1 (Basic)

Private collaboration on default branch (main or master)

  1. Add your exercise partner as a collaborator to your project repository on GitHub.
  2. Clone your partner’s repository.
  3. Add a new change to your collaborator’s project file (if you are unsure, where to add the entry, ask your collaborator!)
  4. Add and commit the changes.
  5. Push the changes to the remote repository.
  6. Pull your partner’s changes into your repository.

Exercises (3)

Collaboration Option 2 (Advanced)

Private collaboration with pull requests (using GitHub Flow)

  1. Add your exercise partner as a collaborator to your project repository on GitHub.
  2. Clone your partner’s repository.
  3. Create a new branch in your collaborator’s repository.
  4. Add a new entry to your collaborator’s project file (e.g., .txt or .qmd (if you are unsure, where to add the entry, ask your collaborator!)
  5. Add and commit the changes.
  6. Push the changes on the new branch to the remote repository.
  7. Create a Pull Request (on GitLab: Merge Request).
  8. Review the Pull Request that your collaborator made in your repository.
  9. 🚀 Optional: Add additional changes on the branch pushed by your collaborator.
  10. Merge the pull request into your repository.

Exercises (4)

Collaboration Option 3 (Alternative)

Clone and sync your repository

  1. Move to a location on your computer where you want to clone a repository.
  2. Clone your remote repository to a different location on your computer.
  3. Stage and commit changes in the new location (consider using a new branch).
  4. Push these new changes to GitHub.
  5. Pull the changes to the repository in the original location.
  6. Delete your newly cloned repository.

🚀 Bonus exercises

Add a README.md

  1. Find the option to create a new file on your remote repository in the browser.
  2. Name the file README.md, add a brief description, and provide a commit message.
  3. 🚀 Optional: Play around with Markdown syntax.
  4. Save the README.md file to the repository.
  5. Pull the changes to your local repository.

3 Appendix

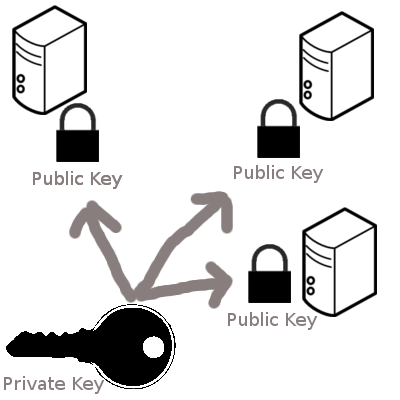

How does SSH work? The key and padlock analogy

Figure 1: “Understanding public key private key concepts” by Blake Smith (License: Unknown; Source on GitHub)
  • When you set up SSH, you generate a key pair: the private key stays on your device, while the public key is copied to the servers you want access to.
  • Think of your public key as a padlock. You can make lots of copies of this padlock and distribute them to different places - servers, computers, or anything you want to secure (just like sharing a padlock to secure different lockers). These places install your padlock, but no one can open it because they don’t have your key.
  • Your private key is the actual key that opens those padlocks. You keep it safe and never share it. As long as your key stays secure, it doesn’t matter how many padlocks you’ve distributed.
  • When you try to connect to a server, SSH checks if the padlock (public key) on that server matches your key. If they match, the door opens.

Warning: “The authenticity of host can’t be established”

TL;DR: Enter yes and hit Enter.

The following message might appear when connecting to GitHub for the first time via SSH:

Output
The authenticity of host 'github.com (140.82.121.3)' can't be established.
ECDSA key fingerprint is SHA256:nThbg6GUVB7ZdnZ3iXYvgIhXZOL7NXqb7A4s9F8XY7w.
Are you sure you want to continue connecting (yes/no/[fingerprint])?

This message indicates that your system is trying to connect to a remote server (i.e., GitHub) over SSH for the first time, but it doesn’t yet trust the server’s identity.

If you are trusting the server’s identity, enter yes and hit . This will result in the following message:

Output
Warning: Permanently added 'github.com' (ED25519) to the list of known hosts.

This message indicates that the GitHub server’s public key has been added to your ~/.ssh/known_hosts file permanently, so you won’t be prompted with this warning the next time you connect to GitHub over SSH.

After a successful push, you will get a message like this:

Output
Enumerating objects: 17, done.
Counting objects: 100% (17/17), done.
Delta compression using up to 8 threads
Compressing objects: 100% (12/12), done.
Writing objects: 100% (12/12), 2.11 KiB | 2.11 MiB/s, done.
Total 12 (delta 9), reused 0 (delta 0), pack-reused 0
remote: Resolving deltas: 100% (9/9), completed with 5 local objects.
To https://github.com/username/repository.git
   fb3efef..8f50685  main -> main

4 Appendix

Cloning

Cloning

  • Remember to clone a repo in a sensible location (not in your own repository)
  • To rename the cloned repo you can use: git clone <URL> new-folder-name

5 Solutions

Solutions

Connect to remote repositories using SSH

Code
#!/bin/bash

1ssh-keygen -t ed25519 -C "your_email@example.com"
2cat ~/.ssh/id_ed25519.pub
3# Copy the SSh key to your account
1
In the command line, create a new SSH key. Make sure to change the example email to your email address. Optionally, provide a passphrase.
2
Copy the SSH key to your clipboard. Here, we use cat to print the contents of the SSH key to the command line. Copy the contents displayed in the Terminal to your clipboard.
3
Add the SSH key to your remote repository account.

Solutions

Upload your local repository to a remote repository

Code
#!/bin/bash

1# create an empty remote repository
2cd my-project
3git remote add origin https://github.com/your-username/your-repo-name.git
4git push -u origin main
1
To create an empty repository on GitHub: (1) Go to GitHub and click the + icon in the upper-right corner, then select New repository. (2) Name your repository. (3) Do not select Initialize this repository with a README. (4) Click Create repository.
2
Optional: Navigate into the project repository using cd (or a similar path).
3
Set the remote URL of the local repository to the repository using git remote add origin <URL>. Remember to use the correct <URL> depending on whether you authentication method (typically SSH or PAT).
4
Push the changes on the default branch (here, main) to the remote repository using git push -u origin main.

Solutions

“Private” collaboration with pull requests (using GitHub Flow)

Code
#!/bin/bash

1# Add your exercise partner as a collaborator to your recipes repository
2cd ~
3git clone https://github.com/partner-username/partner-repo-name.git
4git checkout -b new-branch-name
5echo "New Recipe" >> recipes.txt
6git add recipes.txt
git commit -m "Add new recipe to recipes.txt"
7git push origin new-branch-name
8# Create a Pull / Merge Request.
9# Review the PR your partner made in your repository.
10# Merge the PR into your repository.
1
Add your exercise partner as a collaborator to your recipes repository: (1) Go to your repository on GitHub. (2) Click on Settings. (2) Click on Manage access in the left sidebar. (3) Click Invite a collaborator and enter your partner’s GitHub username.
2
Move to the location on your computer where you would like to clone your partner’s repository into, using cd in the command line. Here, we cd into the user’s home directory (~).
3
Clone your partner’s repository using git clone. Make sure that you not cloning into an existing repository.
4
Create a new branch in your partner’s repository.
5
Add a recipe to your partner’s recipes.txt file.
6
Add and commit the changes using a descriptive commit message.
7
Push the changes on the new branch to GitHub.
8
Create a Pull Request: (1) Go to your partner’s repository on GitHub. (2) Click Compare & pull request for your branch. (3) Provide a title and description, then click Create pull request.
9
Review the PR your partner made in your repository: (19) Go to your repository on GitHub. (2) Click on the Pull requests tab. (3) Click on the PR made by your partner. (4) Review the changes and provide feedback.
10
Merge the PR into your repository: (1) After reviewing, click the green Merge pull request button. (2) Click Confirm merge.

Solutions

Add a README.md

  1. In your browser, go to your remote repository (for example, on GitHub), click Add file, and select Create new file.
  2. Name the file README.md. Add a brief description of your project. Provide a descriptive commit message at the bottom.
  3. Play around with Markdown syntax
  4. Click the green Commit new file button to save the README.md file to the repository.
  5. Use git pull origin main to pull the changes to your local repository.

Solutions

Clone and sync your repository

Code
#!/bin/bash

1cd /new/location/for/repo
2git clone https://github.com/your-username/your-repo-name.git /new/location/for/repo
3git checkout -b new-branch
echo "New Recipe" >> recipes.txt
git add recipes.txt
git commit -m "Add new recipe to recipes.txt"
4git push -u origin new-branch
5cd /original/location/for/repo
git fetch
git switch new-branch
6rm -rf /new/location/for/repo
1
Move to the location on your computer where you would like to clone your own repository into, using cd in the command line.
2
Clone your repository from GitHub to a different location on your computer.
3
Stage and commit changes in the new location (consider using a new branch).
4
Push the new changes to GitHub.
5
Fetch these new changes to the repository in the original location.
6
Delete your newly cloned repository.

Version Control Course
